Apache mod_rewrite Technical Details

API Phases ¶

The Apache HTTP Server handles requests in several phases. At each of these phases, one or more modules may be called upon to handle that portion of the request lifecycle. Phases include things like URL-to-filename translation, authentication, authorization, content, and logging. (This is not an exhaustive list.)

mod_rewrite acts in two of these phases (or "hooks", as they are often called) to influence how URLs may be rewritten.

First, it uses the URL-to-filename translation hook, which occurs after the HTTP request has been read, but before any authorization starts. Secondly, it uses the Fixup hook, which is after the authorization phases, and after per-directory configuration files (.htaccess files) have been read, but before the content handler is called.

After a request comes in and a corresponding server or virtual host has been determined, the rewriting engine starts processing any mod_rewrite directives appearing in the per-server configuration. (i.e., in the main server configuration file and <Virtualhost> sections.) This happens in the URL-to-filename phase.

A few steps later, once the final data directories have been found, the per-directory configuration directives (.htaccess files and <Directory> blocks) are applied. This happens in the Fixup phase.

In each of these cases, mod_rewrite rewrites the REQUEST_URI either to a new URL, or to a filename.

In per-directory context, rules are applied during the Fixup phase after the URL has already been translated to a filename. This changes what the pattern matches against and how substitutions are handled. See the Per-directory Rewrites document for practical details on path stripping, RewriteBase, and how to avoid looping.

Module Processing Order ¶

mod_rewrite and mod_alias both operate during the URL-to-filename translation phase, but mod_rewrite runs first regardless of the order in which directives appear in the configuration file. This is determined by the hook priority each module registers, not by source order.

The practical consequence: when both RewriteRule and Redirect (or RedirectMatch) are present in the same server or virtual-host context, the rewrite rules are evaluated first. If a RewriteRule matches and rewrites the URL-path (or returns a redirect), Redirect never sees the request.

# In this configuration, the Redirect is never reached for /old
# because the RewriteRule matches first — even though
# the Redirect appears earlier in the file.
Redirect "/old" "http://example.com/new"
RewriteRule "^/old" "/other" [L]

Because of this inconsistency between contexts, mixing mod_rewrite and mod_alias directives in the same scope is a common source of confusion. The simplest advice: choose one module for a given task. If you need rewrite conditions or pattern matching, use RewriteRule exclusively. If a simple prefix redirect suffices, use Redirect and don't add rewrite rules that might interact with it.

URL Encoding and Decoding ¶

Apache httpd unescapes URL-encoded characters in the request URL-path before any RewriteRule pattern matching takes place. A request for /my%20page/cats%3Fdogs is decoded to /my page/cats?dogs, and that decoded string is what the RewriteRule pattern matches against.

This means you cannot write a pattern that matches the literal URL-encoded form. If you need to distinguish /horses%2Fponies from /horses/ponies, use %{THE_REQUEST} in a RewriteCond — it preserves the original request line exactly as the client sent it, before any decoding:

# Match only the literally-encoded %2F, not a real path separator
RewriteCond "%{THE_REQUEST}" "/horses%2F"
RewriteRule "^/horses/ponies$" "/special-handler" [L]

After substitution, mod_rewrite re-encodes the resulting URL-path for output. Several flags control this behavior:

• [B] — re-escape backreferences so that special characters captured from the decoded URL-path are not interpreted as delimiters in the substitution.
• [BNP] — when [B] is active, encode spaces as %20 rather than + (appropriate for path components, not query strings).
• [NE] — suppress the default escaping of special characters in the substitution result, allowing literal #, ?, and other characters to pass through unmodified on external redirects.

AllowEncodedSlashes

By default, Apache returns 404 for any URL containing an encoded slash (%2F). The AllowEncodedSlashes directive controls this behavior:

• Off (default) — reject %2F with 404.
• On — allow %2F and decode it to / before passing to handlers.
• NoDecode — allow %2F but keep it in encoded form, letting the backend application distinguish it from a real path separator.

When using the [B] flag with URLs that may contain encoded slashes, you typically need AllowEncodedSlashes NoDecode to prevent Apache from rejecting the re-encoded result.

Ruleset Processing ¶

Now when mod_rewrite is triggered in these two API phases, it reads the configured rulesets from its configuration structure (which itself was either created on startup for per-server context or during the directory walk of the Apache kernel for per-directory context). Then the URL rewriting engine is started with the contained ruleset (one or more rules together with their conditions). The operation of the URL rewriting engine itself is exactly the same for both configuration contexts. Only the final result processing is different.

The order of rules in the ruleset is important because the rewriting engine processes them in a special (and not very obvious) order. The rule is this: The rewriting engine loops through the ruleset rule by rule (RewriteRule directives) and when a particular rule matches it optionally loops through existing corresponding conditions (RewriteCond directives). For historical reasons the conditions are given first, and so the control flow is a little bit long-winded. See Figure 1 for more details.

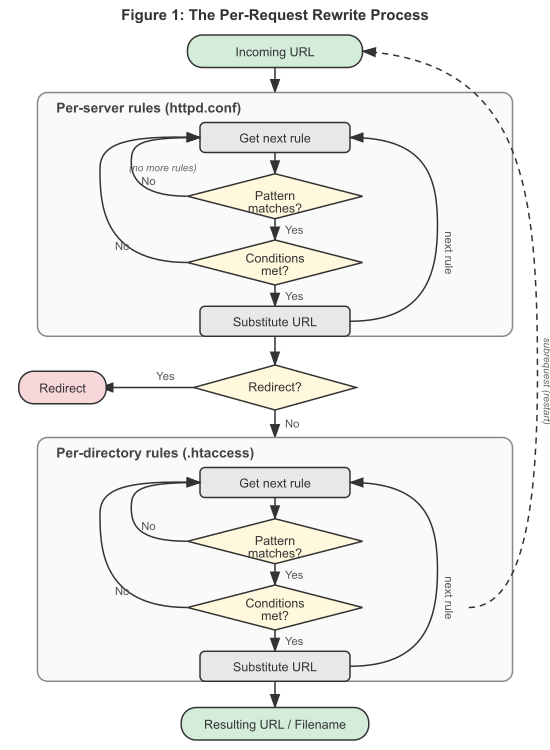

Figure 1:The control flow through the rewriting ruleset

First the URL is matched against the Pattern of each rule. If it fails, mod_rewrite immediately stops processing this rule, and continues with the next rule. If the Pattern matches, mod_rewrite looks for corresponding rule conditions (RewriteCond directives, appearing immediately above the RewriteRule in the configuration). If none are present, it substitutes the URL with a new value, which is constructed from the string Substitution, and goes on with its rule-looping. But if conditions exist, it starts an inner loop for processing them in the order that they are listed. For conditions, the logic is different: we don't match a pattern against the current URL. Instead we first create a string TestString by expanding variables, back-references, map lookups, etc. and then we try to match CondPattern against it. If the pattern doesn't match, the complete set of conditions and the corresponding rule fails. If the pattern matches, then the next condition is processed until no more conditions are available. If all conditions match, processing is continued with the substitution of the URL with Substitution.
